Accelerator Update for August 6, 2007 - August 10, 2007



Fermilab Shutdown Report

LINAC

  • Low energy Low Level RF upgrade – ~ 5% complete
  • H- Vacuum upgrade – 50% complete

Booster

Electrical Work:

  • 480/120V connection to the racks at BWT complete
  • Cable pull progressing well (~ 45% complete)

Water work:

LCW water work in the Booster West Gallery

  • Booster West Gallery isolated from CUB
  • All RF stations have been removed out the way
  • Prep work and set up for contractors almost complete
  • Tunnel water work had a great start and is going well
  • Replacing black tubing with Kynar (~60% complete)

BE AWARE:

      • 4” and 6” copper pipe are staged in the gallery.

Corrector Installation:

  • Disassemble prototype from L4 and shipped back to MTF for tests
  • 4 fully assembled magnets are ready for installation
  • One of them has been installed at L19
  • Today’s plan is to install another one at L17

Next week:

  • Finish the cable pull
  • Contractors will start installation of the 4” and 6” pipe. There will be a lot of activity with parts in the hallway.
  • Start installing the filtration system
  • Align both correctors and continue prepping other location in preparation for installation.

Antiproton Source

Mechanical

  • Leak Check (4)
    • Finished checking D/A & A40
      • D:ESEP fixed
  • D:ISEP Shielding
    • Cutting steel
  • Ion Chamber removal
  • Deb DCCT motorized stand
    • Will move GAPMON?
  • D:EKIK ceramic tube
  • AP2 Water Hose Replacement
  • Leaking LQA
    • Disconnected; as-found survey
  • Replace leaking Debuncher Sextuple

Cryo

  • Valve Stem replaced
  • Leak Check (2)
  • LN2 transfer line maintenance

Target Station

  • Water Systems (2)
  • Temperature Monitoring (2)
  • Target Rotation
  • Storage
  • SEM Module
  • LVDTs
  • Sample Retrieval
  • Lens motion
  • Air Exhaust Stack
  • 10mm-2 into transformer
    • Prepping
  • 10mm-3 into transformer
    • Prepping
  • Lens replacement

Cooling Systems

  • Deb 3&4 Trans Notch Filters
    • Work in progress
  • Deb Double Notch Filters
    • Work in progress
  • Stacktail 4-8GHz Equalizer
    • Work in progress
  • TWT balance & trip points
  • Stacktail Filter 3 cable change

Electrical (Pbar & EE Support)

  • Shunt Move
  • Shunt Repairs (6)
  • PS Maintenance
  • Lens SCRs
    • Tested; installing
  • Regulation Electronics
  • Ion Pump maintenance
  • Deb Shunt re-arrangement
    • Await plan

Other

  • Interlocks/Safety System (3)
  • Repair cathodic protection
  • Dirt holes under buildings
  • DCCT calibration
  • Baking System checkout
  • RF & TWT filters maintenance
  • Lights Checkout
    • FESS to fix
  • Acc BPM repairs
  • Activation Survey
    • Finished AP1 & Accumulator
  • Inductance checkout
  • PM ODH Fans & Sumps
  • Tunnel Wireless
  • Install Leak Detector
  • SEM maintenance

Main Injector

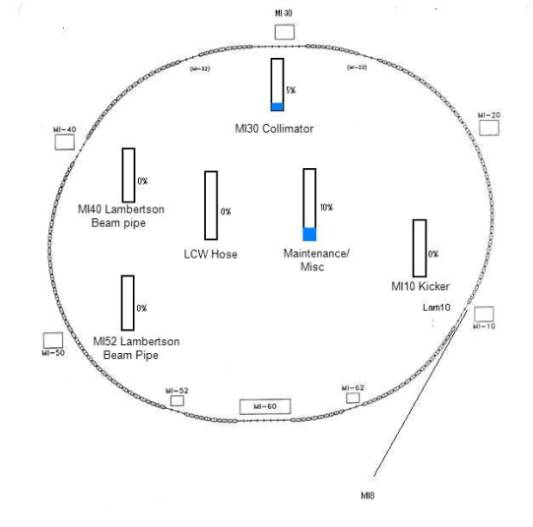

Began installation of M30 collimator


Miscellaneous maintenance

Recycler

Pelletron

  • Open since Tuesday (8/7)
    • Ron did not find anything abnormal
    • Usual amount of chain dust; no shaft dust
    • Found only two needles (less efficient in high voltage regulation)
    • Needles will be replaced
    • Measured GVM face to terminal shell distance.
    • Removal black poly dust
    • Chain: clean or replace?
    • New DCCT section installed, leak checked and under vacuum since 9 AM Wednesday.
      • Ready for alignment
    • V303 move planned; move qt303 DS and move V303 to where qt303 was.
    • Trombone additional quadrupoles installation issues
      • Under way starting at 601
      • Need to move MI buss support at 604
      • MI RF PA’s nearby
      • Need to talk to HLRF about stations 14 and 18

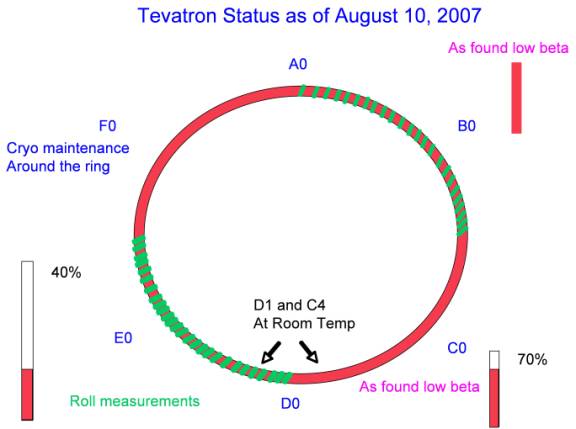

Tevatron

Things To Come

  • E1 and E0 warm up and leak repair
  • C0 and A 17 vacuum work
  • F17 kicker replacement
  • Dehumidifier work
  • Vacuum pump maintenance
  • Cryo maintenance
  • Bad stand replacement?

SwitchYard

They are moving SWICs and two quadrupole magnets

NuMI

MI-65 is considered a construction zone. You need steel-toed shoes, long pants, and a hard hat to enter. There is new crane electronics.

MiniBooNE

  • Reverse Horn Polarity
    • Take wipes.
    • Reverse polarity of horn power supply.
    • Test horn.
  • Check Corrosion Tabs at 25m Absorber
    • Unstack 9 blocks from 25m absorber.
    • Retrieve corrosion tabs.
    • Restack blocks.
    • Seal cover.
  • Dry out horn (09Aug07)
  • Check Leakage Current on Ion Pumps
  • Power Supply Maintenance
  • Toroid Work

MTA Beamline Installation

  • Linac shutdown does not start until next week
    • However we had the chance to access the Linac enclosure 3 days this week and complete some critical tasks
      • Alignment
        • Finished setting up controls
        • Beam line stake out is complete
    • Removal of the “gravel” ramp is complete
    • Varieties of small tours with contractors and task managers to assess jobs and confirmation of drawings were complete
  • MTA beam line installation is scheduled to start its tunnel activities on Tuesday, August 14th
    • Equipment readiness
      • All magnets are staged at IB2, on their stands, ready for installation
      • Ship to Linac parking lot next Tuesday, August 14th
  • Next Week:
    • 150 ton mobile crane will be located at south of Linac parking lot for ~ 2 ½ weeks, starting August 14th
      • This is for the removal of the shielding of the MTA hatch and installation of the beam line.
    • The area will also be used as staging area for the needed additional shielding and temporary storage of the magnets and components that will be installed in the tunnel
      • The components are scheduled to be showing up to the area on Monday, August 13th
    • As a result, about 20 parking spaces will be used

Collider Detector at Fermilab

Alignment has conducted as found surveys. They will be opening up their detector.

D-Zero

Alignment has conducted as found surveys. They are conducting system work.

Alignment

Alignment work has begun

Mechanical

Janitorial work in the tunnels has begun

Cryogenic System

  • Shutdown started Sunday morning with fast warm-ups of C4 and D1 magnet strings to room temperature.
    • D1 ODH event occurred when Tevatron Cryogenic Transfer Line LHe supply valve EVSH didn’t properly seal thus venting helium into FRIG bldg; resolved by closing valve with auxiliary control box.
  • Full Tevatron warm-up to LN2 temperature was started Sunday evening after KRSS power outages.
    • 90% of the helium inventory recovered into CHL LHe Dewars and Tank Farm.
    • Tevatron Cryogenic Transfer Line vacuum problems at F2-F3, also at various Pbar components/transfer lines; all vacuums pumped down. Tunnel magnet cryostat vacuum problems being addressed by MSD.
    • Power outage of MSS on Monday morning uneventful.

Cryo Operations

  • 3 FRIG Mycom compressors (plus DZero) running with helium pre-cooled to LN2 temperature flowing through magnet strings
  • CHL helium inventory management system operating (Tank Farm, Helium Purifier, A0 GHe Recovery)
  • CHL Nitrogen Reliquefier plant off and LN2 supply dependent on vendor deliveries to CHL LN2 Dewar tanks
  • Just-in-time shutdown due to CHL feeder 38 failure during the night.

FRIG Maintenance

  • 7 out of 13 wet expander flywheels have been replaced
  • Wet expander overhauls of cold ends have started
  • CDF BA#1 compressor unit is being replaced (failed last month)
  • Various vacuum, instrumentation, and controls problems being worked on.

CHL Maintenance

  • Helium Coldbox-2 was cooled down successfully for readiness testing
  • Coldbox-1
    • Being warmed up to room temperature, as is Coldbox-2
    • Charcoal Adsorbers being set up for high temperature regeneration
  • Nitrogen Reliquefier plant maintenance in progress:
    • Marley Cooling Tower cleanup/overhaul,
    • Rotoflow compressor after-cooler heat exchanger tube bundle being replaced
  • Various facility maintenance to commence next week once CHL operations shiftwork ceases this Friday.

Controls

This Week

  • Recovery from Power Outages
  • Networks, CAMAC Links, Front ends, etc.
  • General Maintenance
  • CAMAC Front End SLD Updates Started
  • Tevatron Copper BP/ABT link decommissioned
  • Tevatron Copper MDAT link decommissioned
  • Main Injector C200 Updates completed

Next Week

  • Saturday 8/11
    • AD Server Updates; loss of access to individual servers as updated. Web access interruptions.
  • Monday 8/13
    • Database Table Update; no DABBEL access ~2hr.
  • Tuesday 8/14
    • MAC Room & AD Computer Room UPS Maintenance
    • Network Switch IOS Updates
  • Wednesday 8/15
    • Network Switch IOS Updates
    • JAVA Engine Restarts/Updates
  • Thursday 8/16
    • Network Switch IOS Updates

Safety

  • Several safety concerns and suggestions reported this week.
  • Numerous requests for PPE, LOTO locks, tags, and job lock boxes
    • Baseball style bump caps are available from the ESH Department for head protection in non-construction areas.
  • MI-65 has been posted as a construction area
    • Hard hats, long pants, and short sleeve shirt are necessary for entering the building or accessing the Pre-Target and Target Hall enclosures.
  • ALARA job estimates are currently coming in according to plans.
  • Utilize Time, Distance, and Shielding to minimize exposure.
  • Task Managers and Crew Leaders are reminded to turn in weekly dosimeter reports to the ESH Department on Monday for the this week.
  • A successful shutdown is getting our work done safely.

FESS

No Report
